Adastra CS Series CS-5X Call Station for RX45 Audio Matrix, 24V, 5-Zone Paging, 450x140x125mm

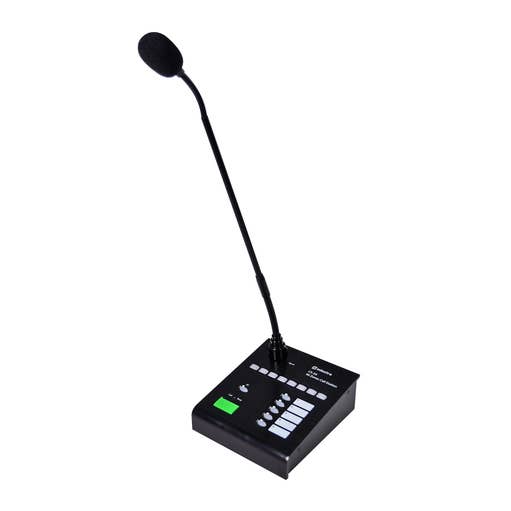

Adastra CS-5X Call Station for RX45 Audio Matrix Overview

The Adastra CS-5X Call Station is an advanced paging microphone designed specifically for use with the RX45 Audio Matrix. Ideal for commercial and public address systems, this call station enables individual and multi-zone paging across up to 40 zones, making it suitable for large venues, corporate offices, retail spaces, and educational institutions. Its user-friendly interface includes group, zone, and page buttons, allowing seamless communication across different areas. The unit connects via the supplied RJ45 cable for both power and signal transmission, simplifying installation. Additionally, an optional 24V DC input extends the maximum connection length up to 1km, making it highly adaptable for large-scale deployments in environments requiring extensive coverage.

Built for reliability and precision, the Adastra CS-5X features a back electret condenser capsule with a cardioid polar pattern, ensuring clear voice pickup while minimizing background noise. The microphone offers adjustable aux, mic, and chime levels, along with chime DIP switches for added flexibility. It supports an RS-485 control interface, ensuring smooth integration with the RX45 Audio Matrix for streamlined paging operations. Connectivity options include an XLR connector, 3.5mm aux input, and a dedicated 24V DC power jack. Delivering a frequency response of 150Hz – 20kHz and an output impedance of 600 ohms, this call station ensures professional-grade audio clarity. Measuring 450 x 140 x 125mm and weighing just 653g, it provides a compact and efficient solution for voice paging in multi-zone environments.
