Adastra CS4 CS Series Call Station Mixer Amplifier, 4-Zone, Up to 1km CAT5 Wiring, 3.5mm AUX Input, 460x140x115mm

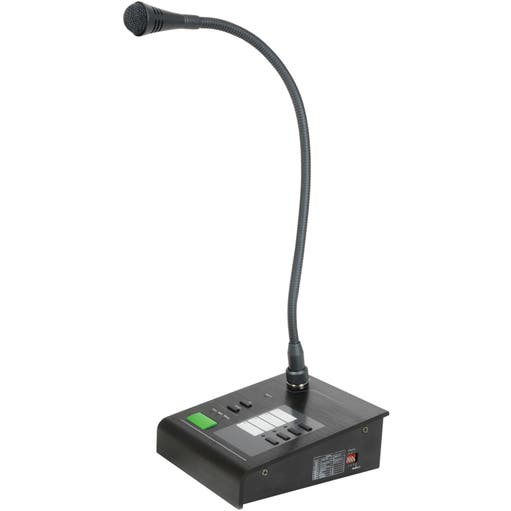

Adastra CS4 Call Station for RM244V Overview

The Adastra CS4 Call Station is a dedicated paging microphone designed for seamless integration with the RM244V Mixer Amplifier. This versatile call station allows users to assign paging to individual zones or all four zones, making it ideal for commercial environments, public address systems, and multi-zone setups. With eight selectable chime settings and a cardioid condenser microphone, it ensures clear, professional-grade audio for announcements. The unit supports remote wiring over CAT5 cable up to 100m, or up to 1km when powered with an optional 24V DC adaptor, offering flexible installation options. Additionally, a 3.5mm auxiliary input allows for external audio playback, enhancing its functionality in various applications such as educational institutions, retail spaces, and corporate offices.

Built with reliability in mind, the Adastra CS4 Call Station delivers high-quality audio performance with its balanced 600-ohm output impedance and a frequency response of 150Hz to 22kHz. The unit features RS-485 control for seamless communication with the amplifier, ensuring efficient operation in paging and announcement systems. It includes dedicated controls for auxiliary, microphone, and chime levels, along with zone selection buttons for easy paging management. The supplied 1m RJ45 patch lead facilitates quick setup, while the optional 24V DC power jack extends connectivity range. Weighing just 670g and measuring 460 x 140 x 115mm, this compact yet durable call station is a professional solution for clear and controlled audio announcements in multi-zone environments.
