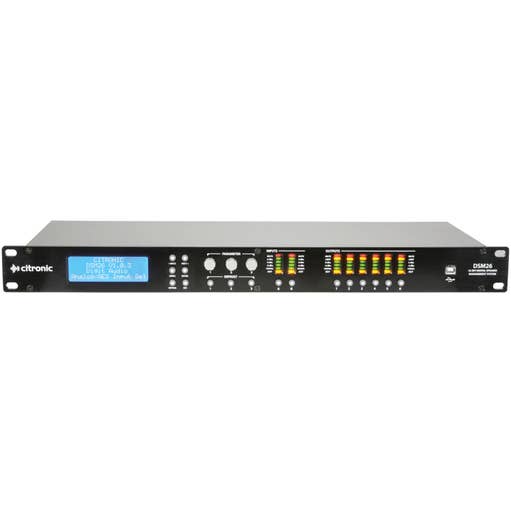

Citronic DSM26 Digital Speaker Management System Overview
The Citronic DSM26 Digital Speaker Management System is a versatile and powerful solution designed to optimize your audio setup, whether for live performances, studio recordings, or fixed installations. With its advanced digital processing capabilities, it offers precise control over your sound, ensuring clarity and balance across all frequencies. The system allows for independent control of all inputs and outputs, giving you the flexibility to tailor your audio to any environment. Network connectivity via USB and LAN enables effortless remote control, while the included software simplifies configuration and adjustments. Whether you're an audio professional or an enthusiast, the DSM26 empowers you to achieve superior sound quality, making it a must-have for those seeking to elevate their audio experience.
The DSM26 features two balanced XLR or AES digital inputs with 8-band shelving or parametric EQ, allowing for detailed tone shaping and phase correction. Its six balanced XLR outputs offer 8-band parametric EQ and fully programmable high-pass and low-pass filters, supporting crossover types like Linkwitz-Riley, Bessel, and Butterworth. Each output channel includes an adjustable limiter and up to 650ms of delay, providing precise control over dynamics and timing. Powered by a 96kHz, 32-bit floating-point DSP processor, this system ensures high-resolution audio processing. The unit also boasts noise gate functionality on inputs, mute control on any channel, and comprehensive connectivity options, making it an ideal choice for professional audio applications.
KEY FEATURES
- Manage sound with 8-band parametric EQ for precise audio control
- Features phase and gain correction for optimal input balance
- Crossover options include L-R, Bessel, and Butterworth for versatile audio setup
- Independent EQ and limiter on each output for tailored sound management
- Network connectivity via LAN for remote system control and monitoring
- USB interface with software support for PC integration
- Supports both balanced XLR and AES digital inputs
- Includes 6 balanced XLR outputs for comprehensive audio distribution
- Programmable HPF and LPF per output for customized crossover settings
- 96kHz, 32-bit floating point DSP ensures high precision audio processing
- Compact design with dimensions 482 x 44 x 220mm, weighing 319kg
- Low power consumption under 25W for energy-efficient operation
Additional Information
- Dimensions (H x W x D) 44 x 482 x 220 mm
