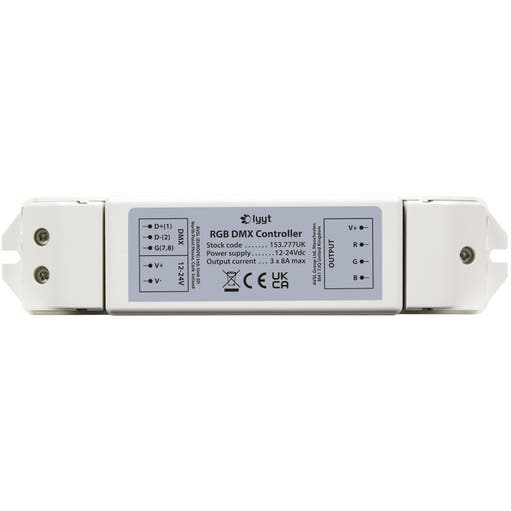

LYYT 12-24V RGB DMX Controller 3x8A
The LYYT 12-24V RGB DMX Controller is designed for both professional and personal use, offering precise management of RGB LED lighting setups. It converts DMX512/1990 signals into analogue outputs, making it ideal for dynamic lighting control environments like stages, theatres, and home installations. With the capability to handle up to 8A per channel, users can create intricate colour mixes and achieve desired brightness levels. This controller ensures vibrant and consistent colour reproduction, providing reliable and efficient control over RGB lighting systems that enhance any setting's ambiance.
The LYYT RGB DMX Controller operates on a 12V or 24V DC power supply, supporting a maximum power of 288W at 12V and 576W at 24V. It features three DMX channels for precise RGB colour mixing, with an output current of 3 x 8A max. Connections are facilitated via screw terminals for both DC power input and DMX connections. Compact in design, its dimensions are 170 x 30 x 40mm, and it has an IP20 rating for indoor use. The controller operates efficiently within a temperature range of minus 20 to 50 degrees Celsius and weighs a manageable 92 grams, making it an excellent addition to any setup.
KEY FEATURES
- 3 channel DMX control for precise RGB colour mixing
- 256 levels of brightness for optimal lighting effects
- Supports up to 8A output per channel
- Operates on 12V or 24V power supply
- Screw terminal DMX input for secure connections
- Maximum power: 288W at 12V, 576W at 24V
- DMX channels assign a colour for each channel
- Side mounted DIP switches for start address setting
- IP20 rated for indoor use
- Compact size: 170 x 30 x 40mm
- Wide working temperature range from -20 to 50 degrees
- Product weight: 92g
- Colour / Finish RGB
Additional Information
- Dimensions (H x W x D) 170 x 30 x 40mm
