Mercury Mux MZR 12 Element UHF Digital Aerial, 9-13dB Gain, 75 Ohm, F-Type Connection, 850mm
FREE UK MAINLAND DELIVERY OVER £150
credit

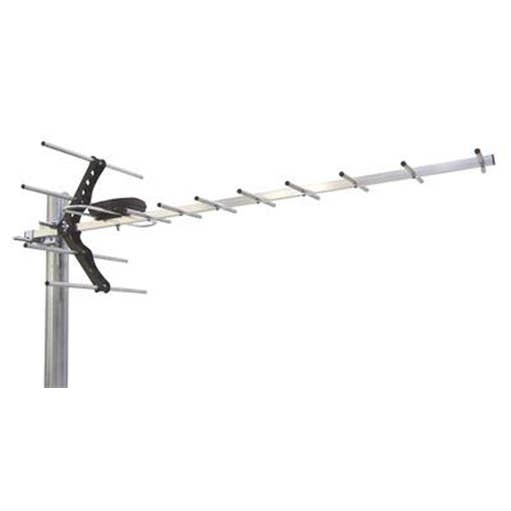

Mercury Mux MZR 12 (K Band) Digital Aerial
This digital aerial is an excellent choice for those seeking high-quality TV reception. Designed to efficiently capture a wide range of channels, the aerial ensures you never miss your favourite programmes. With a gain of 9-13dB, it provides a strong and clear signal, while the front-back ratio of 10-17dB minimises interference from unwanted signals. Ideal for both upgrades and new installations, its compact 850mm size makes it suitable for small spaces, delivering optimal performance even in challenging environments.
The Mercury Mux MZR 12 operates within a frequency range of 470 to 694 MHz, supporting channels 21 to 48 for comprehensive coverage. Featuring a 75 Ohm impedance and a beam width of 44 degrees horizontally and 49 degrees vertically, this aerial provides versatile placement options. Measuring 850mm in length and equipped with an F-type connection, it ensures easy installation. With its robust technical specifications, this aerial is designed to provide reliable and clear TV reception for various applications.
KEY FEATURES
- 12 elements for enhanced signal reception
- Frequency range: 470~694 MHz for wide channel access
- Channel compatibility: 21-48 for versatile TV viewing
- Impedance of 75ohm for optimal performance
- Gain range of 9-13dB for strong and clear signals
- Front to back ratio of 10-17dB reduces interference
- Easy installation with F-type connection
- Compact 850mm length ideal for small spaces
- Horizontal beam width of 44 degrees for broad coverage
- Vertical beam width of 49 degrees for enhanced signal quality
- Designed for K Band for superior performance
- Colour / Finish Silver
Additional Information
- Dimensions (H x W x D) 850mm
