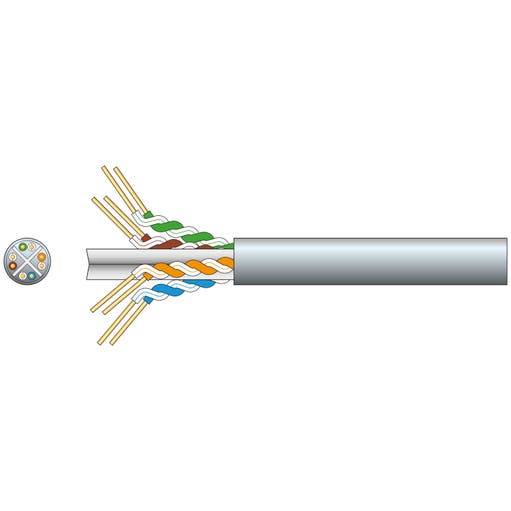

Mercury Cat6 U/UTP Network Cable
The Mercury Cat6 U/UTP Network Cable is a reliable choice for those in need of high-speed data transmission. Perfectly suited for Gigabit Ethernet applications, this cable ensures efficient and uninterrupted data flow. Constructed with oxygen-free solid copper conductors, it offers enhanced performance and longevity. The cable is supplied in a user-friendly dispensing box, marked at 1-metre intervals for convenience. With compliance with the TIA/EIA-568 Cat6 standard and HDBaseT compatibility, it is engineered to meet the demands of modern data networks, making it ideal for both professional and home use.
Technical specifications reveal that this Cat6 cable comprises 8 strands of 1/0.54mm diameter copper with a conductor CSA of 8 x 0.229mm². The cable diameter is 5.8mm, encased in a PVC sheath with a thickness of 0.55mm. It offers a capacitance of 5.2nF/100m, ensuring minimal signal loss. The DC resistance at 20 degrees Celsius is less than 9.5 Ohms per 100m, with an impedance of 100 plus or minus 15 Ohms between 100 to 250MHz. The cable passes rigorous testing with a return loss of over 17.3dB and attenuation below 32.8dB at 100m, ensuring robust performance in various networking scenarios.
KEY FEATURES
- Cat6 oxygen free copper twisted pair for clear data transmission
- Supplied in a 305m easy-pull dispensing box
- Marked at 1 metre intervals for easy measurement
- Passes Cat6 fluke test 100m at 250MHz efficiency
- Complies with TIA/EIA-568 Cat6 standard for reliability
- HDBaseT compliant for advanced connectivity options
- 8 x 1/0.54mmØ strands with solid OFC conductors
- PVC sheath with a thickness of 0.55mm for insulation
- Impedance maintained at 100 ohms between 100-250MHz
- DC resistance at 20 degrees less than 9.5 ohms per 100m
- Return loss over 17.3dB for efficient signal performance
- Total cable diameter of 5.8mm for compact installations
- Colour / Finish Grey
Additional Information
- Dimensions (H x W x D) 305m
