Mercury Cat6 U/UTP LSZH Network Cable, 305m, Oxygen-Free Copper, Lilac, Low Smoke Zero Halogen, HDBaseT Compliant

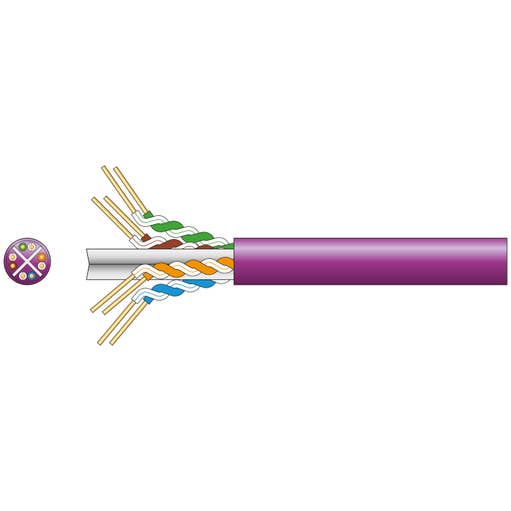

Mercury Cat6 U/UTP LSZH Network Cable

Designed for high-speed data transmission, this cable is perfect for Gigabit Ethernet applications. Featuring oxygen-free copper conductors, it ensures reliable performance and durability. The low smoke zero halogen (LSZH) sheath is RoHS compliant, reducing the risk of thick black smoke and poisonous fumes during a fire, making it ideal for environments where fire safety is a concern, such as data centres and office buildings. The cable is supplied in an easy-pull dispensing box, facilitating convenient installation and handling.

With a diameter of 5.8mm, the Mercury Cat6 U/UTP LSZH Network Cable comprises 8 strands of solid copper, each with a diameter of 1/0.54mm, providing a conductor CSA of 8 x 0.229mm². It passes the Cat6 fluke test at 100 metres with a frequency of 250MHz and complies with the TIA/EIA-568 Cat6 standard. It offers a return loss of more than 17.3dB at 100m, with an attenuation of less than 32.8dB. The capacitance is 5.2nF/100m, and the DC resistance at 20°C is less than 9.5 Ohms/100m. Additionally, the cable is HDBaseT compliant, offering a reliable solution for high-performance networking applications.
