Mercury Economy Cat6 U/UTP Network Cable, 305m, Solid CCA, 100 Ohm, Grey
FREE UK MAINLAND DELIVERY OVER £150
credit

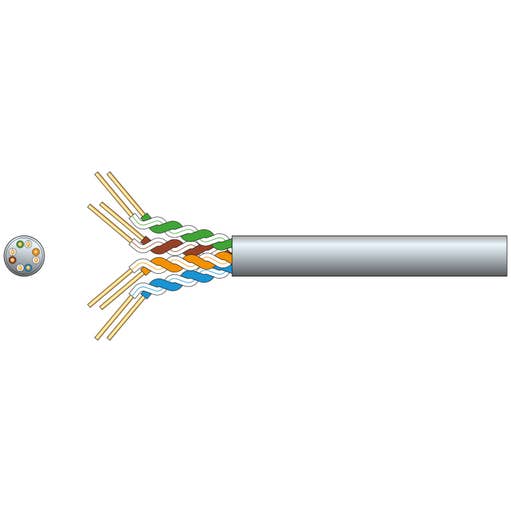

Economy Cat6 U/UTP Network Cable
The Mercury Economy Cat6 U/UTP Network Cable is an ideal choice for high-speed data transmission in indoor environments, designed for Gigabit Ethernet applications. This cable is perfect for IT professionals and businesses seeking reliable and efficient network solutions without breaking the bank. Its solid copper-clad aluminium conductor ensures dependable performance, while the easy-pull dispensing box simplifies installation and handling, making it a practical choice for large-scale networking projects or home setups.
This cable features a solid CCA conductor with 8 strands of 1/0.57mm diameter, offering a cross-sectional area of 8 x 0.26mm². The cable diameter is 5.5mm, featuring HDPE insulation with a thickness of 0.23mm and a PVC sheath of 0.5mm. It has an impedance of 100 Ohms, with a DC resistance of less than 35 Ohms per 100 metres at 20 degrees Celsius. The cable passes the Cat6 fluke test 100m at 250MHz, complies with TIA/EIA-568 Cat6 standard, and weighs 8.5kg, making it robust and reliable for various networking applications.
KEY FEATURES
- Cat6 UUTP cable
- Solid copper clad aluminium conductor
- TIAEIA 568 Cat6 compliant
- Eight strands 1.0.57mm diameter
- High density polyethylene insulation 0.23mm
- PVC sheath 0.5mm thickness
- 5.5mm cable diameter
- Impedance 100 Ohms
- DC resistance under 35 Ohms per 100m
- Return loss over 20dB at 100m
- 305m length
- Colour / Finish Grey
Additional Information
- Dimensions (H x W x D) 5.5mm diameter
