Mercury Cat6a Network Cable, 305m, U/FTP LSZH, Oxygen-Free Copper, Aluminium Foil Shield, Lilac

Mercury Cat6a U/FTP LSZH Network Cable

This high-performance Cat6a U/FTP LSZH Network Cable is ideal for those requiring efficient data transmission. Suitable for Gigabit Ethernet applications, it ensures reliable high-speed connections. The cable features a low smoke zero halogen sheath, reducing the risk of thick black smoke and harmful fumes during a fire, making it perfect for environments with strict fire safety regulations. Its sturdy wooden drum reel allows for easy dispensing and installation, providing convenience for both professional and DIY installations.

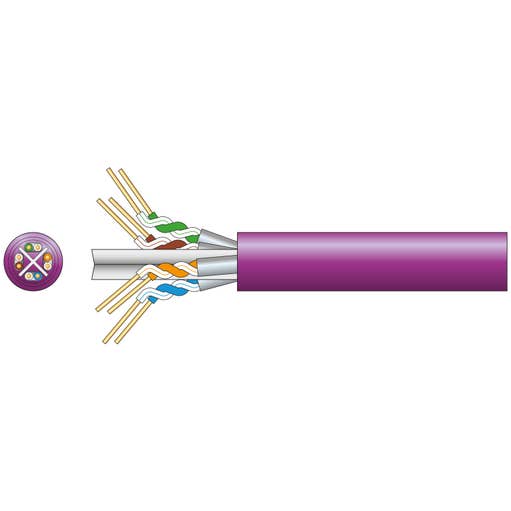

Engineered to meet demanding standards, this cable includes an AWG 23 solid oxygen-free copper conductor and individual pair aluminium foil screens for enhanced performance. It complies with the TIA/EIA-568 Cat6a standard and passes the Cat6a fluke test at 100m with a frequency of 500MHz. The cable has a diameter of 7.5mm, with a PE insulation thickness of 0.385mm and a 0.55mm LSZH sheath. Attenuation is less than 45.3dB at 100m, and the impedance ranges from 100 plus or minus 15 Ohms to 100 plus or minus 22 Ohms across different frequencies. With a capacitance of 6.6nF/100m and a return loss greater than 25dB at 100m, this cable ensures optimal signal transmission and reliability for both commercial and residential settings.
