Mercury Cat6a S/FTP LSZH Network Cable, 305m, Oxygen-Free Copper, Lilac

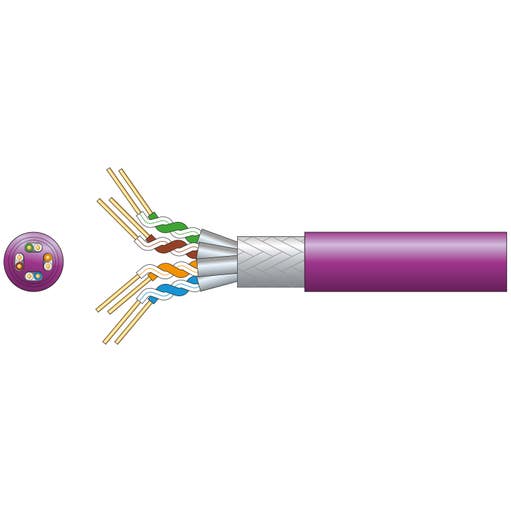

Mercury Cat6a S/FTP LSZH Network Cable

The Mercury Cat6a S/FTP LSZH Network Cable is meticulously engineered for environments where high-speed data transfer is a priority, such as in Gigabit Ethernet applications. Its low smoke zero halogen (LSZH) sheath makes it an optimal choice for settings where minimising smoke and toxic fumes is crucial during fire events. This cable is fully equipped to handle data transmission within noisy environments, thanks to its dual screening with individual aluminium foil and an overall braided aluminium screen, effectively reducing pair and alien crosstalk. Supplied on a durable wooden drum reel, it ensures easy management and deployment, marking every metre for precision in distance management.

This cable features a 305m length and weighs 17.4kg, with an outer diameter of 7.5mm. It comprises a solid oxygen-free copper conductor of AWG 23 and is compliant with TIA/EIA-568 Cat6a standards. The cable's dielectric properties include a capacitance of 6.6nF/100m, DC resistance under 9.38 Ohms/100m, and impedance values ranging from 100 plus or minus 15 Ohms to 100 plus or minus 22 Ohms, depending on frequency. With high performance specifications, such as a return loss greater than 25dB, NEXT over 74.3dB, and attenuation under 45.3dB at 100m, this lilac-coloured cable meets rigorous industry standards and fluke tests for efficiency and stability at 500MHz.
