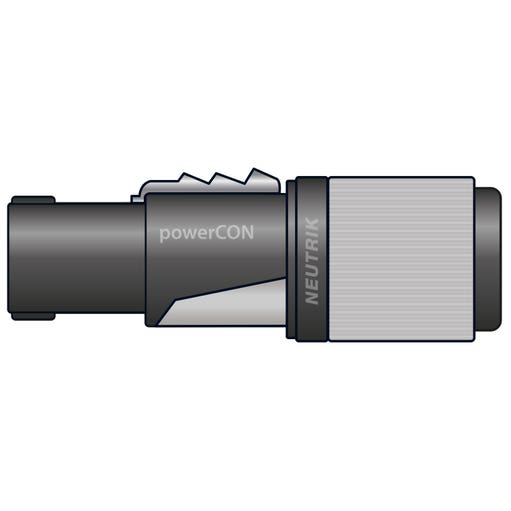

Neutrik NAC3FXXB-W-S Powercon Connector, Locking AC Mains, Screw Terminal, Grey
FREE UK MAINLAND DELIVERY OVER £150
credit
Neutrik NAC3FXX Powercon Connectors
The Neutrik NAC3FXX Powercon Connectors deliver a robust and reliable power connection solution, ideal for scenarios demanding durability and safety. These connectors replace traditional appliance couplers and incorporate a locking device for a secure fit, making them perfect for demanding environments. Keyed and colour-coded for power-out, they feature strain relief that locks mechanically with the insert, offering straightforward usability. The twist-lock system ensures a safe and efficient power connection, catering to a wide range of applications.
Designed for resilience, the Neutrik NAC3FXX Powercon Connectors boast a single-phase, 3-conductor lockable design with circuit-breaking capability when paired with powercon XX Series receptacles. They accommodate cable diameters from 6-12mm and 10-16mm, ensuring versatility. With contact resistance of ≤ 2 milliohms and an impressive lifespan of approximately 5,000 mating cycles, these connectors are built for long-term use. The screw-type terminals and IP20 rating make them suitable for various settings. Operating within a temperature range of minus 33 degrees Celsius to plus 80 degrees Celsius, they offer exceptional reliability under diverse conditions.
KEY FEATURES
- Locking AC mains cable connector for secure connections
- Keyed and colour coded for power-out applications
- Compatible with cable diameters of 6-12mm and 10-16mm
- Single phase, 3 conductor design with circuit breaking capability
- Rugged solution with a locking device for appliance couplers
- Power-in and power-out versions prevent intermating
- Strain relief locks align mechanically for easy assembly
- Reliable twist lock system for user convenience
- Robust construction meets superior Neutrik quality standards
- Ensures up to 5,000 mating cycles for long-term use
- Operates within temperature range of -33 to +80 degrees
- IP20 rated for protection against small objects
- Colour / Finish Grey
