Mercury 100U Foamed PE Coaxial Cable, 75 Ohm, Copper Braid, Oxygen-Free Copper, 100m, Black
FREE UK MAINLAND DELIVERY OVER £150
credit

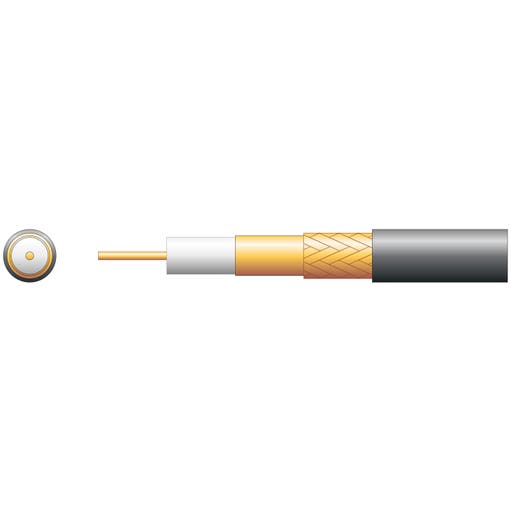

Mercury 100U 75 Ohms Foam Filled Coaxial Cable - Copper Braid
This coaxial cable is perfect for ensuring reliable signal transmission across a range of applications, including digital, satellite, and cable TV. Its solid oxygen-free copper conductor guarantees excellent conductivity and signal clarity. With a combination of copper foil screen and oxygen-free copper braid, it effectively reduces noise interference, making it ideal for high-quality audiovisual setups. The cable is designed for both installers and DIY enthusiasts, available in 100m or 250m reels with metric cut markers for precise installation, suitable for both residential and professional environments.
The Mercury 100U coaxial cable boasts a conductor diameter of 1mm and a 4.6mm foam polyethylene dielectric. It supports an impedance of 75 Ohms and a velocity factor of 83%, ensuring efficient signal transmission. The cable features a capacitance of 54pF/m and maintains a solid return loss, with 30dB min./100m at 5-400MHz. It minimises signal loss with attenuation values ranging from 1.8dB max./100m at 5MHz to 32.7dB max./100m at 2150MHz. The overall cable diameter is 6.6mm, encased in a durable PVC sheath for enhanced protection and longevity.
KEY FEATURES
- 75 Ohms impedance for efficient signal transmission
- Solid oxygen-free copper conductor enhances signal quality
- Foam filled polyethylene dielectric reduces noise
- Copper foil screen for improved signal shielding
- Oxygen-free copper braid minimizes interference
- Suitable for digital, satellite and cable TV signals
- Supplied in 100m reel with metric cut markers
- Cable diameter of 6.6mm for easy installation
- Velocity factor of 83% for rapid signal transmission
- High return loss up to 30dB from 5-400MHz
- Low attenuation 1.8dB max at 5MHz
- Conductor diameter is 1mm for robust connections
- Colour / Finish Black
Additional Information
- Dimensions (H x W x D) Cable diameter: 6.6mm
