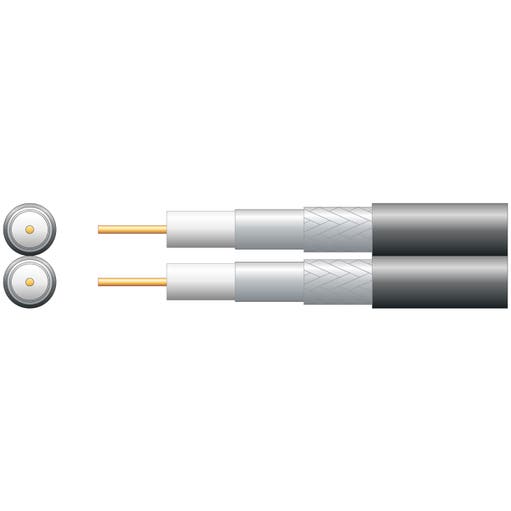

Mercury Eco Twin RG6 Coaxial Cable, 75 Ohm, Aluminium Braid, Foam Filled, 250m, Black
FREE UK MAINLAND DELIVERY OVER £150
credit
Mercury Economy Twin RG6 75 Ohms Foam Filled Coaxial Cable
This high-quality coaxial cable is perfect for satellite dish installations, particularly with dual or quad LNB setups. It significantly reduces noise penetration due to its overall aluminium foil screen and braid, ensuring clear signals with minimal interference. Durable and reliable, it serves both professional and personal users who need efficient connectivity over long distances. This cable provides a dependable solution for current and future cabling requirements, offering ease of installation and excellent noise rejection.
The technical specifications of this coaxial cable include a solid copper clad steel conductor and a foam-filled polyethylene dielectric. It features a conductor diameter of 2 x 1mm and a CSA of 2 x 0.79mm². The cable's dielectric measures 4.6mmØ foam PE, accompanied by an aluminium/PET foil screen and 2 x 64/0.12mmØ aluminium braid. Its impedance is rated at 75 Ohms, with a capacitance of 54pF/m and a velocity factor of 83%. The cable offers attenuation ranging from 2.8dB max./100m at 5MHz to 33.3dB max./100m at 2150MHz. It is available in reels of either 100m or 250m, complete with metric cut markers for convenience.
KEY FEATURES
- 75 Ohms twin RG6 coaxial cable for stable signal transmission
- Solid copper clad steel conductor enhances durability
- Foam filled polyethylene dielectric reduces signal loss
- Aluminium foil screen and braid minimize noise penetration
- Ideal for satellite dish installation with dual or quad LNB
- Supplied in 100m or 250m reels with metric cut markers
- Conductor diameter: 2 x 1mm
- Cable diameter: 2 x 6.6mm
- Capacitance of 54pF/m for efficient signal transmission
- Velocity factor of 83% for optimal performance
- Return loss of 24dB min./100m at 5-400MHz
- Attenuation of 2.8dB max./100m at 5MHz
- Colour / Finish Black
Additional Information
- Dimensions (H x W x D) 2 x 6.6mm diameter
