Mercury Eco RG6 Coaxial Cable, 100m, 75 Ohm, Aluminium Braid, Air Spaced PE, White
FREE UK MAINLAND DELIVERY OVER £150
credit
Mercury Economy RG6 75 Ohms Air Spaced Coaxial Cable - Aluminium Braid
This Mercury Economy RG6 75 Ohms Air Spaced Coaxial Cable serves as an excellent choice for those in need of reliable signal transmission for digital, satellite, and cable TV. Its air spaced polyethylene dielectric paired with an aluminium braid effectively reduces noise penetration, ensuring clear signal quality is maintained. Ideal for environments where signal integrity is crucial, this cable comes in a 100m reel with metric cut markers for easy installation, making it suitable for both residential and commercial use.

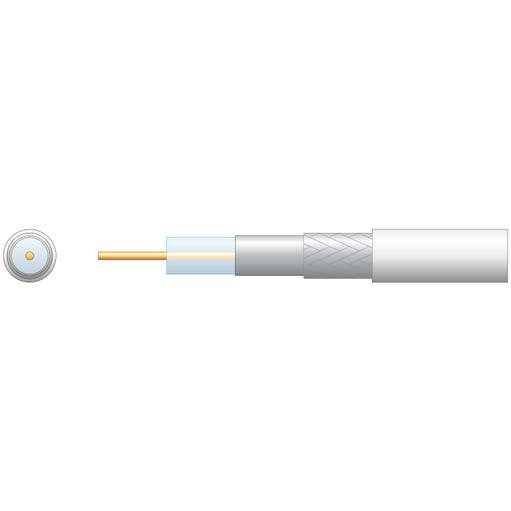

The cable's construction features a solid copper clad steel conductor, complemented by an aluminium foil screen and aluminium braid. It has a conductor diameter of 1mm and a cross-sectional area of 0.79mm², with an air spaced PE dielectric diameter of 4.6mm. The overall cable diameter measures 6.6mm, maintaining an impedance of 75 Ohms and a capacitance of 54pF/m. With a velocity factor of 83% and a weight of 4.1kg, the cable ensures optimal return loss values and attenuation levels across various frequencies, providing reliable and efficient signal transmission over extended distances.
KEY FEATURES
- 75 Ohms impedance ideal for satellite and cable TV
- Solid copper clad steel conductor for durability
- Air spaced polyethylene dielectric for reduced noise
- Aluminium foil screen enhances signal protection
- Aluminium braid lowers interference significantly
- Supplied in 100m reel with metric cut markers
- Cable diameter of 6.6mm for easy installation
- Capacitance of 54pF/m ensures stable signal
- Velocity factor of 83% for efficient signal transmission
- Return loss of 24dB min. at 5-400MHz for quality signal
- Attenuation of 2.9dB max. at 5MHz ensures signal clarity
- Product weight: 4.1kg
- Colour / Finish White
Additional Information
- Dimensions (H x W x D) 6.6mm diameter
