Mercury RG59B/U Shotgun Coaxial Cable, 75 Ohms, 100m, CCA Braid, Solid OFC Conductor, Black
FREE UK MAINLAND DELIVERY OVER £150
credit

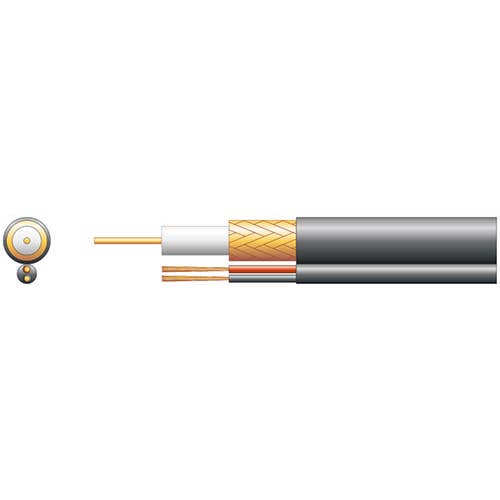

RG59B/U 75 Ohms Shotgun Coaxial Cable - CCA Braid
The RG59B/U 75 Ohms Shotgun Coaxial Cable is designed for efficient CCTV power and signal transmission, combining a coaxial cable with a two-core power cable. Constructed with a solid oxygen-free copper conductor and a foam-filled polyethylene dielectric, it ensures optimal performance and durability. The copper-clad aluminium braid provides excellent shielding, while the stranded oxygen-free copper power cable delivers reliable power transmission. This cable is supplied on a 100m black reel with metric cut markers for easy installation and handling, making it ideal for various video and power applications.
The RG59B/U Shotgun Coaxial Cable features a conductor diameter of 0.8mm and a dielectric diameter of 3.7mm, maintaining a 75 Ohms impedance. With a cable diameter of 6mm and a capacitance of 67pF/m, it achieves a velocity factor of 83%. The power cable consists of two 7/0.38mm stranded bare copper wires, supporting a maximum current of 6A. Available in a 100m length and weighing 6.4kg, this cable ensures efficient signal transmission with varying return loss across frequencies, and its classic black colour offers a professional look for diverse installations.
KEY FEATURES
- 75 Ohms RG59 coaxial cable with CCA braid
- Includes two core power cable for signal transmission
- Solid oxygen-free copper conductor for reliability
- Foam filled polyethylene dielectric for stability
- Supplied in a convenient 100m reel with cut markers
- Impedance of 75 ohms for optimal performance
- Capacitance of 67pF/m ensures efficient signal transfer
- Velocity factor of 83% for reduced signal delay
- Max current capacity of 6A for power transmission
- Black colour for discreet installations
- Braid material made from copper clad aluminium
- Product weight: 6.4kg
- Colour / Finish Black
Additional Information
- Dimensions (H x W x D) 6mm diameter
