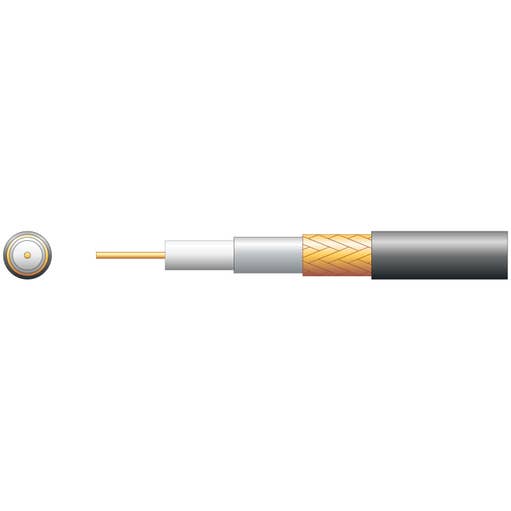

Mercury RG59B/U Coaxial Cable, 75 Ohm, Foam PE, Copper Braid, 100m, Black

Mercury RG59B/U 75 Ohms Foam Filled Coaxial Cable - Copper Braid

This coaxial cable is an optimal choice for professionals requiring dependable video signal transmission in applications like CCTV systems. With its foam-filled polyethylene dielectric and solid oxygen-free copper conductor, it guarantees superior performance. The oxygen-free copper braid enhances durability and protects the signal, while the black PVC sheath adds robustness, making it suitable for a range of environments. The cable is designed for user convenience, supplied on a 100m reel with metric cut markers to facilitate precise installation and efficient cable management for any project.

The Mercury RG59B/U coaxial cable features a solid OFC conductor with a diameter of 0.8mm and a foam PE dielectric measuring 3.7mm in diameter, ensuring a velocity factor of 83%. The overall cable diameter is 6mm, with a capacitance of 67pF/m and a return loss specification of at least 24dB for frequencies between 5-400MHz. It exhibits maximum attenuation of 2.8dB at 5MHz and 38.1dB at 2150MHz. Equipped with a 48 x 0.12mm OFC braid and an aluminium/PET foil screen, the cable weighs 3.5kg and is available in a length of 100m, ensuring high performance and reliability in demanding applications.
